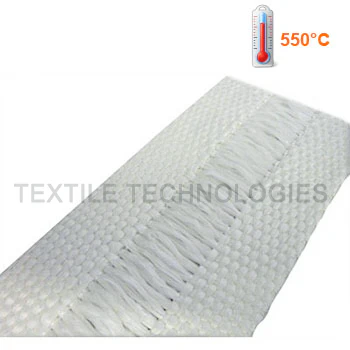

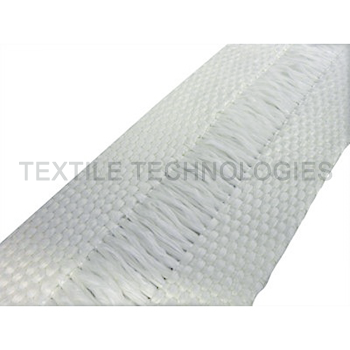

E Glass Ladder Tape
- E Glass Ladder Tape is manufactured from uniformed textured filaments of high bulk type glass fibre yarns resistant to 550°C in optimum conditions.
- Glass Ladder tape is Inorganic, sterile and incombustible.
- Resistant to oils, solvents and most chemicals.
- Low thermal conductivity typically 0.05W/mk.
- Central warp yarns have been removed to create a ladder section to enable application over bolts suitable for boiler, furnace and kiln car door seals.

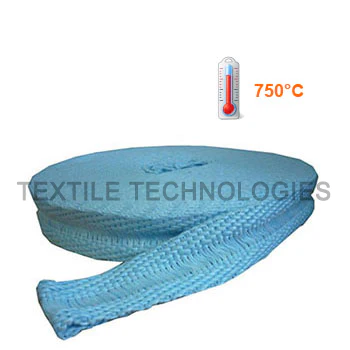

HT750 Glass Ladder Tape
- HT750 ladder tapes are made by weaving chemically modified E glass yarns rated to 700°C continuous 750°C short term in optimum conditions.
- HT self-adhesive backings (for ease of application) and / or vermiculite dispersions (to increase temperature resistance to 1000°C) can also be applied. HT750+
- Central warp yarns have been removed to create a ladder section to enable application over bolts suitable for boiler, furnace and kiln car door seals.
For more technical advice, expertise and information visit Textile Technologies Europe Ltd or to buy online click here.
HR Glass Ladder Tape
- Thermal ladder tapes manufactured from High Resist (HR) glass – an advanced aluminosilicate glass fibre, boasting heat resistance up to 800°C, superior chemical and mechanical properties, and eco-friendly production. It serves as a cost-effective alternative between traditional E Glass and Silica.
- HR glass is an alkali-free aluminosilicate glass, free from boron oxide and fluorine, making it environmentally compliant and reducing hazardous emissions during production. Its patented formulation allows it to replace E glass across various applications while offering enhanced properties.
For more technical advice, expertise and information visit Textile Technologies Europe Ltd.
Applications
- Webbing / Ladder Door Seals for Furnaces / Kilns / Industrial Boilers.
Glass Ladder Tape Table
|
Collection Code
|
Glass Grade
|
Weave
|
Type / Enhancement
|
Thickness
|
Parent Code
|
Possible Widths
|
|---|---|---|---|---|---|---|
|
425
|
E Glass
|
Plain
|
Loomstate
|
1.5/2mm
|
425-1163
|
15mm-500mm
|
|
425
|
E Glass
|
Plain
|
Loomstate
|
3mm
|
425-1361
|
15mm-500mm
|
|
425
|
E Glass
|
Plain
|
Loomstate
|
5/6mm
|
425-1048
|
15mm-500mm
|
|
Collection Code
|
Glass Grade
|
Weave
|
Type / Enhancement
|
Thickness
|
Parent Code
|
Possible Widths
|
|---|---|---|---|---|---|---|
|
585
|
HT750
|
Plain
|
Loomstate
|
2mm
|
585-1163
|
15mm-500mm
|
|
585
|
HT750
|
Plain
|
Loomstate
|
3mm
|
585-1361
|
15mm-500mm
|
|
585
|
HT750
|
Plain
|
Loomstate
|
5/6mm
|
585-1048
|
15mm-500mm
|
|
Collection Code
|
Glass Grade
|
Weave
|
Type / Enhancement
|
Thickness
|
Parent Code
|
Possible Widths
|
|---|---|---|---|---|---|---|
|
1380
|
HR800
|
Plain
|
Loomstate
|
2mm
|
1380-1163
|
15mm-500mm
|
|
1380
|
HR800
|
Plain
|
Loomstate
|
3mm
|
1380-1361
|
15mm-500mm
|
|
1380
|
HR800
|
Plain
|
Loomstate
|
5/6mm
|
1380-1048
|
15mm-500mm
|
FAQs
What is Glass Ladder Tape?
Glass Ladder Tape is a high-performance insulation material made from glass fibres, designed to provide excellent thermal protection in industrial, automotive, and aerospace applications.
Why should I choose Textile Technologies Europe Ltd for Glass Ladder Tape?
Textile Technologies Europe Ltd is a trusted supplier known for providing high-quality Glass Ladder Tape with exceptional customer service, reliable delivery, and competitive prices.
What industries benefit from using Glass Ladder Tape?
Glass Ladder Tape is widely used in industries such as aerospace, automotive, power generation, petrochemical, and manufacturing, where high-temperature resistance and insulation are critical.
What makes Textile Technologies Europe Ltd the leading supplier of Glass Ladder Tape?
We specialize in advanced insulation materials and are known for offering superior quality products, exceptional customer support, and fast, reliable shipping to meet all of your project requirements.
How does Glass Ladder Tape provide thermal insulation?
Glass Ladder Tape provides thermal insulation by preventing heat transfer in high-temperature environments, protecting sensitive components and maintaining temperature stability.
Is Glass Ladder Tape easy to install?
Yes, Glass Ladder Tape is flexible and lightweight, making it easy to install in tight spaces or on complex structures. Its simple application process helps save time and labour costs.
What temperature range can Glass Ladder Tape withstand?
Glass Ladder Tape can typically withstand temperatures up to 550°C (1,022°F), providing superior heat resistance for a wide range of industrial applications.
Why is Textile Technologies Europe Ltd the best place to buy Glass Ladder Tape?
We offer premium-quality Glass Ladder Tape at competitive prices, with expert advice, fast order fulfilment, and delivery worldwide. Our reputation for reliability makes us the preferred choice for insulation solutions.
What are the advantages of Glass Ladder Tape compared to other insulation materials?
Glass Ladder Tape offers superior heat resistance, flexibility, durability, and a higher tensile strength than traditional insulation materials, making it ideal for demanding applications.
Can Glass Ladder Tape be used in high-pressure applications?
Yes, Glass Ladder Tape can be used in high-pressure environments, making it a versatile solution for industries such as oil & gas, power plants, and heavy manufacturing.
How long does Glass Ladder Tape last?
With proper installation and maintenance, Glass Ladder Tape can last for many years, providing long-term protection and performance in high-temperature and demanding conditions.
How can I order Glass Ladder Tape from Textile Technologies Europe Ltd?
Ordering is easy! You can browse our selection of Glass Ladder Tape on our website or contact our team for customized solutions. We ensure fast processing and global delivery.
Does Textile Technologies Europe Ltd offer customized Glass Ladder Tape?
Yes, we offer customized Glass Ladder Tape to meet the unique needs of your projects, including variations in width, thickness, and other specifications.
What makes Textile Technologies Europe Ltd’s Glass Ladder Tape stand out from the competition?
Our Glass Ladder Tape is made from high-quality materials, ensuring maximum thermal protection, durability, and performance. We also offer technical expertise to guide you in selecting the best product for your application.
Can Glass Ladder Tape be used in corrosive environments?
Yes, Glass Ladder Tape is resistant to many corrosive elements, including acids, alkalis, and solvents, making it suitable for use in harsh industrial environments.
Is Glass Ladder Tape suitable for both short-term and long-term applications?
Yes, Glass Ladder Tape is ideal for both short-term and long-term applications, offering reliable thermal protection for a wide range of projects.
What sizes of Glass Ladder Tape are available?
We offer a variety of sizes for Glass Ladder Tape, including custom lengths, widths, and thicknesses to meet the specific requirements of your application.
How does Textile Technologies Europe Ltd ensure the quality of its Glass Ladder Tape?
We use stringent quality control measures to ensure that all of our Glass Ladder Tape products meet industry standards for heat resistance, flexibility, and durability.
Can Glass Ladder Tape be used for both industrial and domestic applications?
Yes, Glass Ladder Tape can be used in both industrial and domestic applications, offering thermal protection in environments like furnaces, kilns, chimneys, and more.
What is the cost of Glass Ladder Tape from Textile Technologies Europe Ltd?
Pricing depends on the specifications and quantity required. For an accurate quote, contact our team or visit our website for detailed pricing information.
Does Glass Ladder Tape require special maintenance?
Glass Ladder Tape is low-maintenance, but it should be checked periodically for wear and tear, especially in high-stress or high-temperature applications.
How do I ensure I’m buying the right Glass Ladder Tape for my needs?
Our expert team at Textile Technologies Europe Ltd can assist you in selecting the best Glass Ladder Tape based on your specific application requirements. Contact us for personalized guidance.
What other thermal protection products does Textile Technologies Europe Ltd offer?
In addition to Glass Ladder Tape, we offer a comprehensive range of thermal protection products, including ceramic blankets, ropes, woven textiles, and more.
Why is Textile Technologies Europe Ltd the best company to buy from for thermal insulation materials?
With years of industry experience, Textile Technologies Europe Ltd is known for offering top-quality products, reliable customer service, and a commitment to meeting your specific thermal insulation needs. We provide the best value and performance, ensuring your project’s success.
How do I order Glass Ladder Tape?
Our glass ladder tape products are available for both individual buyers and trade customers, with options to purchase directly online. Each roll is supplied in clearly defined width, thickness, and mm specifications, making it easy to select the correct product for your application.
To place an order, simply add the required items to your cart and proceed to checkout, where pricing will be clearly calculated including any applicable delivery costs. The regular price and availability of each tape are displayed before purchase, allowing you to review all details before confirming.
Once your order is placed, it will be processed and made ready for dispatch. If you require further assistance, you can contact our team or send an enquiry via email. For full technical support, product range details, and additional high temperature insulation solutions, please visit the main Textile Technologies website.
What is Glass Ladder Tape Used For?
Glass ladder tape is a specialised tape designed for high temperature sealing and insulation in demanding environments. The unique ladder tape construction, where central warp yarns are removed, allows the glass ladder structure to be easily installed over bolts, studs and fixings without compromising the integrity of the seal.
This makes glass ladder tape particularly suitable for sealing access doors on furnaces, kilns and industrial equipment. It is also widely used in stove installations, where stove glass and door seals require reliable insulation to prevent smoke and heat loss. The glass fibre construction ensures the tape remains stable at high temperatures, including continuous use around 550 C environments.
Because of its flexibility and strength, glass ladder tape can also be used around hot pipes, flanges and metal panels, providing a durable and effective sealing solution across a wide range of applications.
Stove and Fireplace Sealing Applications
In domestic and commercial heating systems, glass ladder tape is commonly used as stove thermal ladder tape for sealing stove glass and access doors. The ladder tape design allows the material to be positioned precisely around the edges of the stove door, ensuring a tight and effective seal.
This helps to prevent smoke leakage and stops heat from escaping, improving both safety and efficiency. The glass based construction is resistant to thermal cycling and maintains performance even when exposed to repeated heating and cooling cycles.
Available in a range of thickness, width, and size options, glass ladder tape can be selected to fit specific stove and window configurations. The material is typically supplied in white form, offering a clean and professional finish for visible sealing applications.
Installation and Product Options
Glass ladder tape is easy to install and can be supplied in convenient roll lengths to suit different project requirements. The tape can be cut to the required length, allowing installers to fit it accurately around doors, frames and pipes.
For secure installation, the tape can be fixed mechanically or with high temperature adhesive systems depending on the application. The flexible nature of the glass fibre material ensures it conforms easily to uneven surfaces and complex geometries.
A wide range of products are available, including different types of glass ladder tape with varying temperature capabilities, thickness, and reinforcement options. This allows customers to determine the most appropriate solution based on their specific needs and operating conditions.
